Powerful spindle: speed up to 8000 rpm, 15 kW power for efficient processing.
-
Increased working area: table 1700×800mm, load capacity 1500kg, suitable for large parts.
-
High accuracy: positioning accuracy ±0.008 mm, repeatability ±0.005 mm.
-
Quick tool change: Shift time is 1.8 seconds, increasing productivity.
-
Flexibility in CNC configuration: Support FANUC, SIEMENS, GSK for wide selection.
-

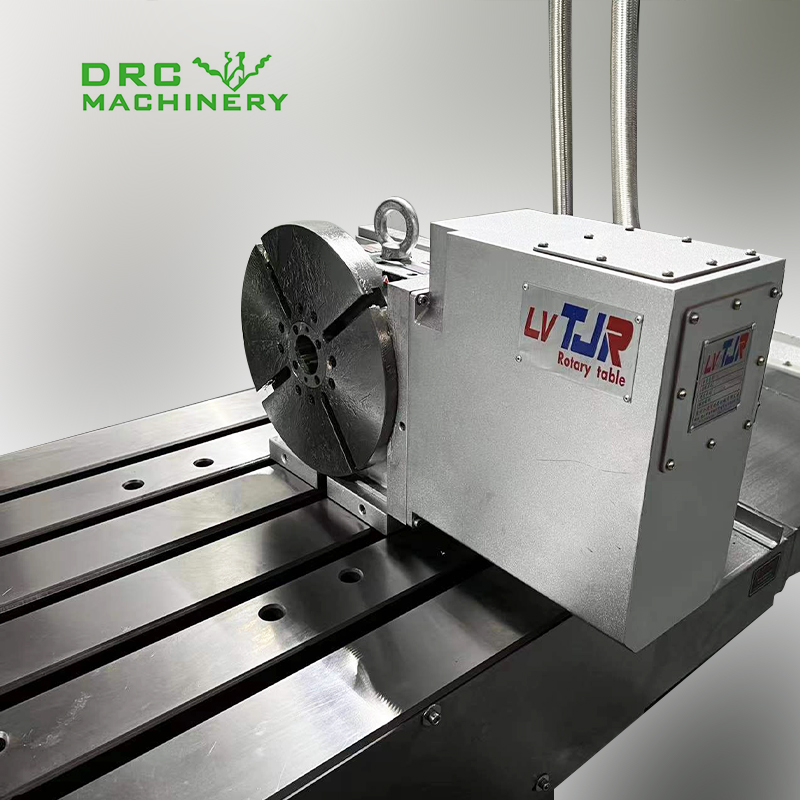

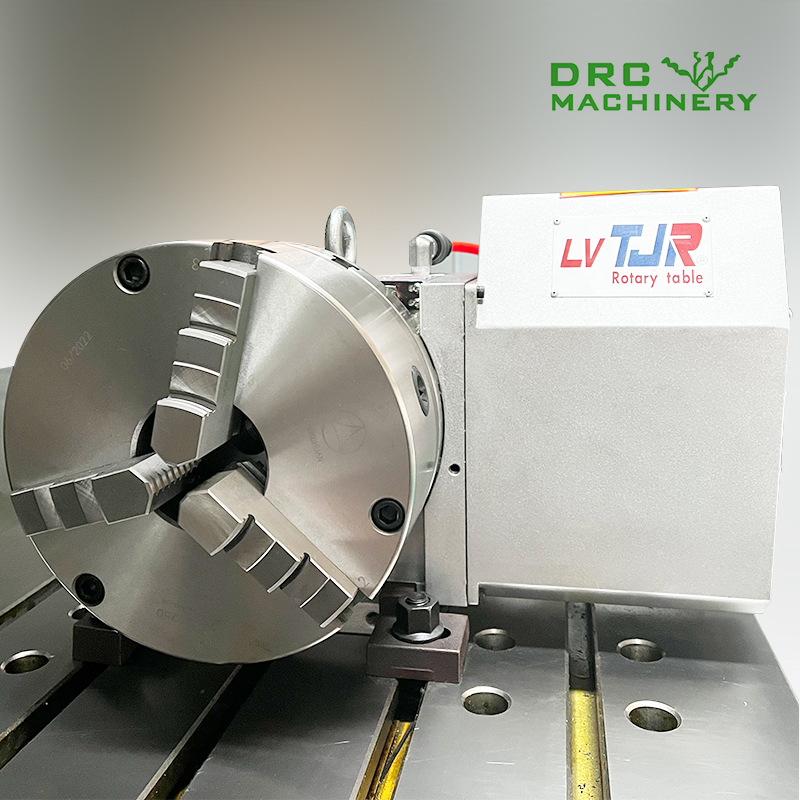

Options for 4th and 5th axis: Advanced processing capabilities for complex tasks.
Products
-
Gantry machining center GMF2716
-
Vertical lathe VT600M
-
HT3-High Precision CNC Machine
-
Vertical lathe C/CK5240
-
CT8 CNC Turning 4 Axis Universal Rotary Center
-
Vertical lathe C/CK5220
-
GMF2213T Gantry Machining Center
-
Vertical lathe VT1200
-
Vertical machining center MVL1270E
-
CK6150-1000 CNC lathe – high productivity and flexibility in processing
-
GMF3015B Gantry Machining Center
-
German small size CNC lathe HT2
-
Vertical lathe VT800
-
RC926 Swiss Type CNC Lathe
-
VMC600-VMC600 High Precision Vertical Machining Center
-
MVL1165 Large machining center
VMC1680 Large machining center
Description
marker
Ttechnical parameters
| Model | VMC1680 |
| Parameters for moving along 3 axes | |
| X-axis movement | 1600mm |
| Y axis movement | 800mm |
| Z axis movement | 700mm |
| Distance from spindle end to work table | 150-885mm |
| Distance from the center of the spindle to the guide surface of the column | 882mm |
| Desktop Settings | |
| Desk size | 1700*800mm |
| Load capacity | 1500kg |
| T Shot | 5×22×135mm |
| Feed Options | |
| Rapid traverse speed of X/Y/Z axes | 30/30/30m/min |
| Feed motion speed X, Y, Z | 1-10m/min |
| Spindle parameters | |
| Spindle connection method | Belt connection |
| Spindle taper | BT50-155 |
| Spindle rotation speed range | 6000 rpm/upgrade to BT40 8000 rpm |
| Spindle motor power | (AC Servo)11/15kW |
| ATC parameters (Tool store) | |
| Tool magazine capacity | 24T/upgrade to 40T |
| Maximum tool diameter | Φ200mm |
| Maximum tool length | 300mm |
| Tool weight | 18kg |
| Precision | |
| Positioning Accuracy | ±0.008/300mm |
| Repeated Positioning Accuracy | ±0.005mm |
| Shape and weight | |
| Machine size | 4050x3070x3610mm |
| Weight | 13500kg |
