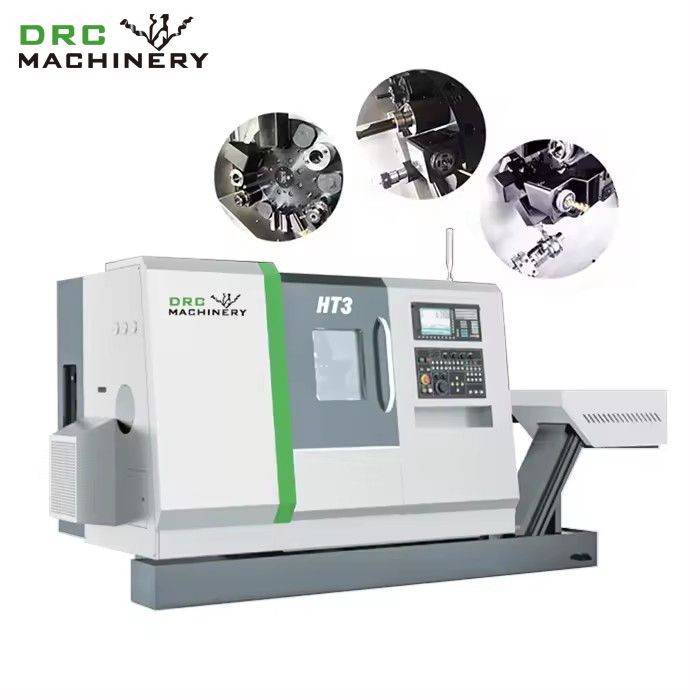

HT3-High Precision CNC Machine
Precision, efficiency, reliability - HT3 CNC machine for smart production!
1.High precision and productivity
HT3 provides accuracy up to0.008 mmand fast movements to30 m/min, which increases efficiency.
2.Multifunctionality

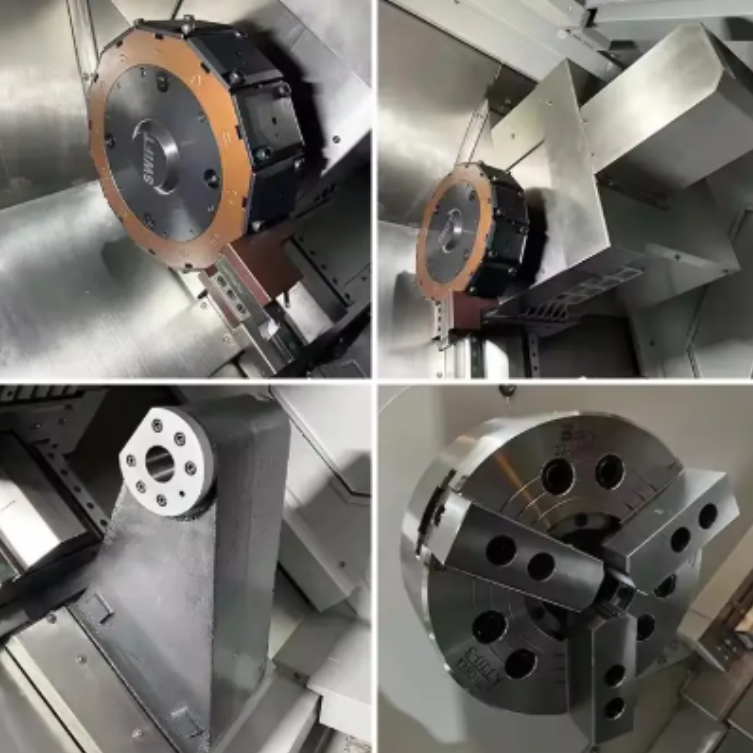

C8-seater tooling machineand an optional tailstock for machining parts up to340 mm.
3.Reliability and integration
High quality components and FANUC control system ensure stable operation and low maintenance costs.
Description
marker
| Technical parameters-HT3 | ||
| Spindle head | Type | FL 140 h5 / A2-6 |
| Max spindle speed | rpm | 5000 |
| Max. Torque | N×m | 90 |
| Spindle power | kW | 7.5-11 |
| Self-centering chuck diameter | mm | 210 |
| Spindle hole diameter | mm | 74 |
| Front bearing diameter | mm | 100 |
| Spindle bearing lubrication | Type | Grease |
| Guide lubrication | Type | Lubricating oil |
| Speed range | rpm | 5-5000 |
| Work area | ||
| Maximum swing over bed | mm | 558 |
| Machinable maximum diameter | mm | 340 |
| Maximum processing length | mm | 350 |
| Maximum rod diameter | mm | 51 |
| Z axis movement | mm | 380 |
| X-axis movement | mm | 180 |
| Ball screw | ||
| X/Z axis ball screw | mm | 32 x 10 |
| Submission | ||
| Z-axis fast movement | m/min | 30 |
| X-axis fast movement | m/min | 30 |
| Axle thrust | ||
| X/Z axis thrust | Nm | 4500 |
| Number of axles | 2 | |
| Verification system | ||
| X/Z axis inspection system | Absolute encoder | |
| Max. Positioning accuracy (X / Z); VDI/DGQ 3441 | mm | 0.008/0.008 |
| Repeatability (X/Z);VDI/DGQ 3441 | mm | 0.004/0.005 |
| Tailstock(optional, need to pay separately) | ||
| Tailstock movement | mm | 350 |
| Tailstock movement | Hydraulic | CNC |
| Max. Tailstock rod | N | 4000 |
| Tailstock center quills | Type | MT4 |
| Tools | ||
| Number of tools | # | 8 |
| Milling head type | Slotted cutting head | |
| Tool size OD | mm | □25，Ø40 |
| Electrical parameters | ||
| Electrical voltage | V | 380 ±10% |
| Frequency | Hz | 50 ± 1% |
| Max installation power | KVA | 20 |
| Hydraulic system | ||
| Max. Working pressure | bar | 45 |
| Volume of the moslosbornik | l | 35 |
| Pump flow | I/min | 24 |
| Oil coolant storage tank | ||
| Storage tank volume(approx.) | l | 150 |
| Storage tank pump transmission | l/min | 30 |
| Storage Tank Coolant Pump Pressure | bar | 5 |
| Noise level | ||
| Noise level | dB(A) | ≤80 |
| Weight | kg | Approximately 3200 |
| Machine tilt angle, material | ° | 45°, HT300 |
| Size | mm | 3900*1900*2050 |
