Vertical lathe C/CK5116

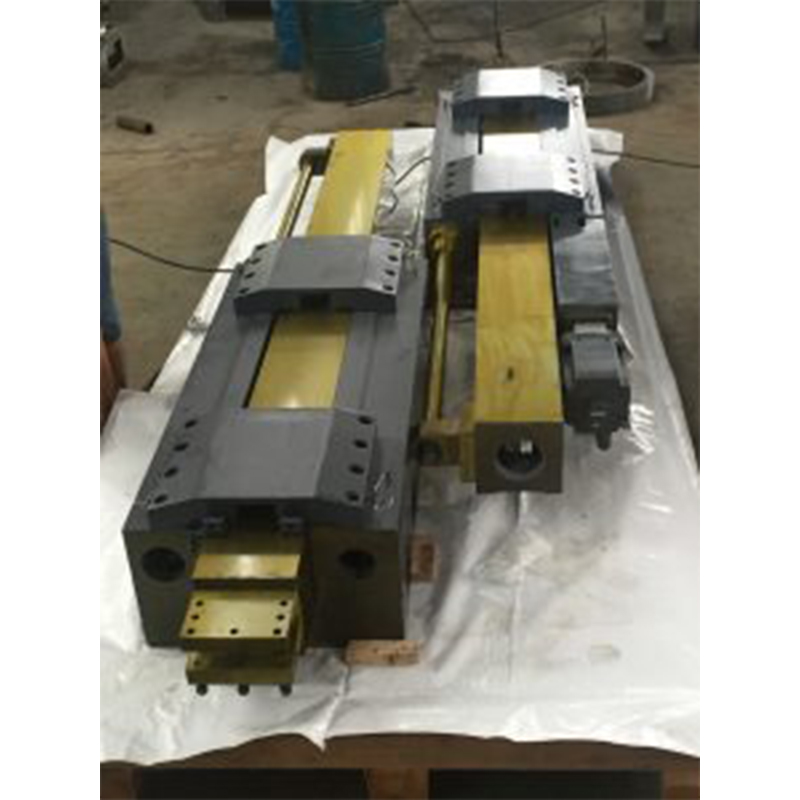

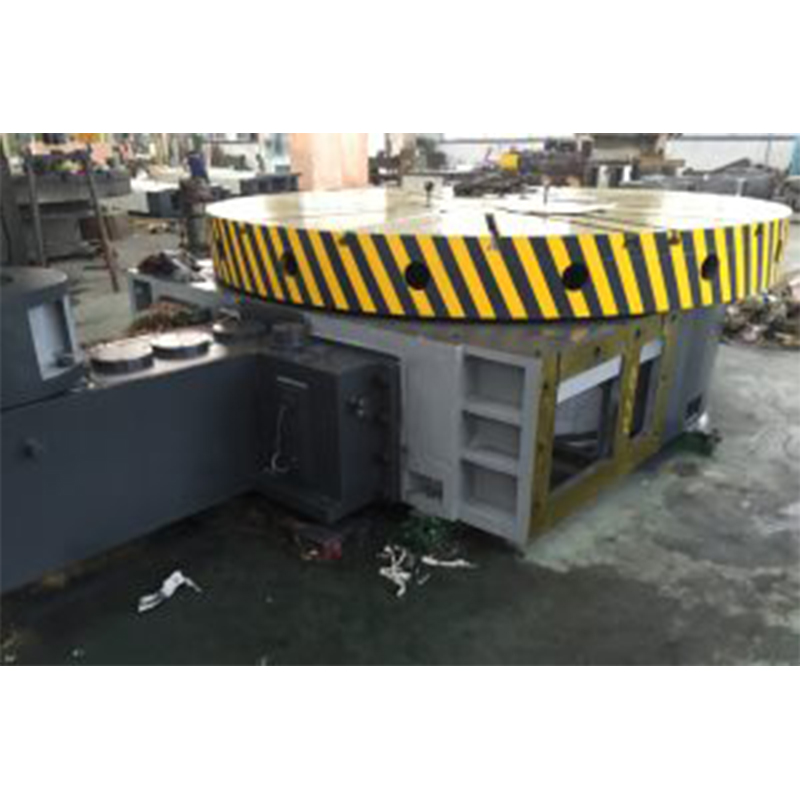

C/CK5116Mainly consists of work table, work table base, column, beam and vertical tool rack. The main parts of this machine are made of HT250 cast iron using resin sand and aging technology (artificial aging and vibration aging) after rough processing. The casting quality is reliable, without cracks, pores or shrinkage cavities. After aging, the casting has a stable structure, which ensures the stability of the machine during use. The product quality certificate contains a chemical composition analysis report, a heat treatment report and a time curve of heat treatment temperature.
Description
marker
C/CK5116 Technical Parameters:
| No. | Options | Unit | C/CK5116 |
| 1 | The largest diameter of a vertical candlestick | mm | 1600 |
| 2 | The largest processing diameter of the slider head | mm | 1400 |
| 3 | Workbench diameter | mm | 1400 |
| 4 | Maximum Artifact Height | mm | 1200 |
| 5 | Maximum workpiece weight | ton | 5 |
| 6 | Table speed range | rpm | 5-160 |
| 7 | Series | 16/stepless | |
| 8 | Slider head feed range | kg | 0.8-86 |
| 9 | series | 12/stepless | |
| 10 | Vertical candle holder, max. cutting force | kg | 2500 |
| 11 | Maximum cutting force of ram head | kg | 2000 |
| 12 | Total cutting force | kg | 4000 |
| 13 | Max. torque | kg/m | 2500 |
| 14 | Vertical candlestick chart | mm | 916 |
| 15 | Vertical | mm | 800 |
| 16 | Lowering the slider head | mm | 630 |
| 17 | vertical | mm | 900 |
| 18 | Lowering the beam | mm/min | 650 |
| 19 | Slider head fast feed speed | mm/min | 1.8 |
| 20 | Beam lifting speed | mm | 0.44 |
| 21 | Tool Shaft Cross Section Size (Width x Height) | kW | 30x40 |
| 22 | Main engine power | mm | 30 |
| 23 | Machine appearance size (L x W x H) | kg | 2600x2665x3528 |
| 24 | Machine weight | mm | 12500 |
C/CK5116 Standard configuration:
① The beam is raised and lowered by T-screw (Shandong Jining Screw Factory).
②Machine Gear: The material, technology and hardness of gear (Shenyang Machine Tool Co., Ltd. Gear Branch) are used to achieve 6th level precision.
③Machine bearings: The small bearings are mainly made from Luoyang bearings, and the main shaft bearings are made from (Wafangdian Bearing Factory), with precision and hardness reaching P5 level.
④ Machine hydraulic system: Changzhou Jinpeng hydraulic parts.
⑤Workbench Guide: Made of zinc-aluminum alloy produced in Wuhu, Anhui Province, with low thermal deformation and high wear resistance.
⑥Electrical devices of the machine: well-known domestic manufacturers are used. (Mainly Tianzheng and Delixi)
⑦Large machine parts: HT250 (in-house production)
C/CK5116Accessories supplied with the machine:
| No. | Name | Note | QTY |
| 1 | Column rack | 1 | |
| 2 | Gearbox | 1 | |
| 3 | Desk | 1 | |
| 4 | Feed box | 2 | |
| 5 | Beam | 1 | |
| 6 | Vertical support | 2 | |
| 7 | Beam lifting mechanism | 1 | |
| 8 | Hydraulic control drive | 1 | |
| 9 | Main engine | 1 | |
| 10 | Push button pendant station | 1 | |
| 11 | jaw chuck | 4 | |
| 12 | Technical documents | ||
| 13 | Instructions for use | 1 | |
| 14 | Certificate of Conformity | 1 | |
| 15 | Packing list | 1 | |
| 16 | Tool set | 2 | |
| 17 | Foundation bolt | M24X500 | 14 |
| 18 | Cartridge key | 24; QIS92--3 | 1 |
| 19 | Square socket wrench | 22; QIS92--8 | 1 |
| 20 | Adjustment of thrust iron | 240 mm | 14 |
