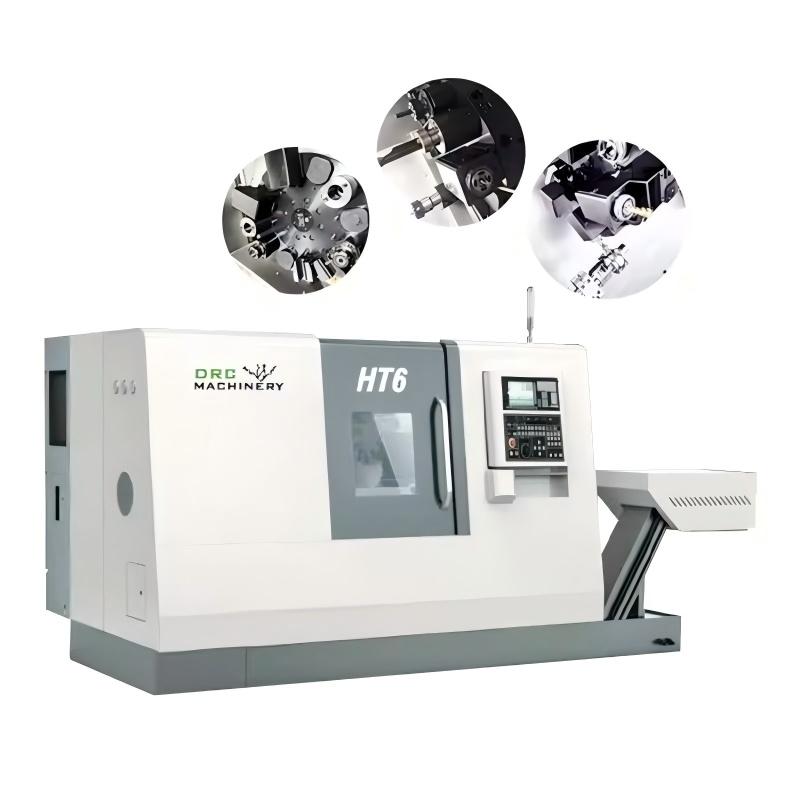

HT6 - High Precision CNC Machine
Smart Manufacturing with HT6: High Speed, High Precision, High Reliability!
1.High precision and productivity
Accuracy up to 0.005 mm and spindle speed up to 4500 rpm provide excellent processing and productivity.
2.Multifunctionality

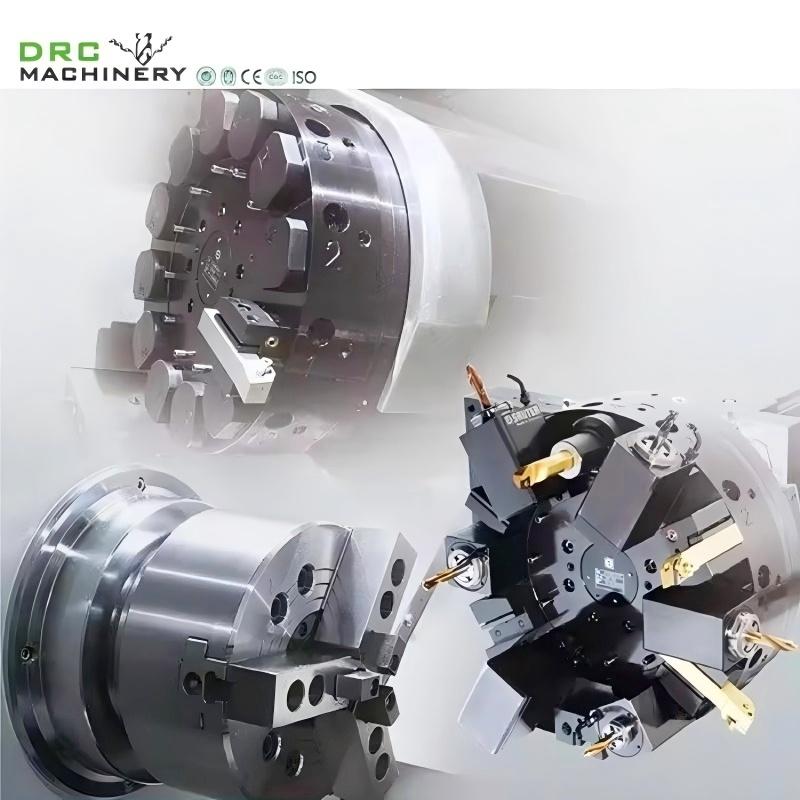

12-position servo turret and hydraulic tailstock for machining workpieces up to 400 mm and lengths up to 550 mm.
3.Reliability and low costs
Quality components and cooling systems reduce maintenance costs and increase durability.
Description
marker
| Technical Parameters-HT6 | ||
| Spindle head | type | FL 170 h5 |
| Spindle speed | rpm | 4500 |
| Maximum torque | N×m | 256 |
| Spindle power | Kw | 15-18.5 |
| Self-centering chuck diameter | mm | 310 |
| Spindle hole | mm | 87 |
| Front bearing diameter | mm | 130 |
| Spindle Bearing Grease | type | Lubrication |
| Rail lubrication | type | Lubricating oil |
| Speed range | rpm | 5-4000 |
| work area | ||
| Bed diameter | mm | 670 |
| Machinable maximum diameter | mm | 400 |
| Maximum processing length | mm | 550 |
| Maximum rod diameter | mm | 65 |
| Z axis movement | mm | 600 |
| X-axis movement | mm | 267 |
| Ball screw | ||
| X/Z Axis Ball Screw D x P | mm | 40 x 10 |
| Feed | ||
| Z-axis rapid traverse | m/min | 30 |
| X-axis rapid traverse | m/min | 30 |
| Traction shaft | ||
| X/Z axis thrust | Nm | 7500 |
| Number of axes | 2 | |
| measuring system | ||
| X/Z axis measuring system X/Z | Absolute encoder | |
| Highest positioning accuracy (X/Z); VDI/DGQ 3441 | mm | 0.008/0.01 |
| Repeatable positioning accuracy (X/Z); VDI/DGQ 3441 | mm | 0.005/0.008 |
| Tailstock | ||
| Tailstock stroke | mm | 500 |
| Mobile tailstock | type | Hydraulically programmable |
| Maximum tailstock force | N | 8000 |
| Tailstock center bushing | type | MT 5 |
| Tool Accessories | ||
| Servo turret | type | SAUTER |
| Number of tools | # | 12 |
| Shank | mm | □25，Ø40 |
| Electrical parameters | ||
| Voltage | V | 380 ±10% |
| frequency | Hz | 50 ± 1% |
| Maximum installed power | KVA | 35 |
| Fuse 400V 400V | A | 63 |
| Connect the cable part | mm2 | 4 x 10 |
| Hydraulic system | ||
| Working pressure | bar | 50 |
| Oil storage tank capacity | l | 35 |
| Pump flow | I/in | 24 |
| cooling system | ||
| Water tank capacity (approx.) | l | 180 |
| Pump transmission | l/min | 30 |
| Coolant pump pressure | bar | 5 |
| Noise level | ||
| Noise level | dB(A) | ≤80 |
| mass | kg | About 5500 |
| Bed angle, material | - | 45°, cast iron |
