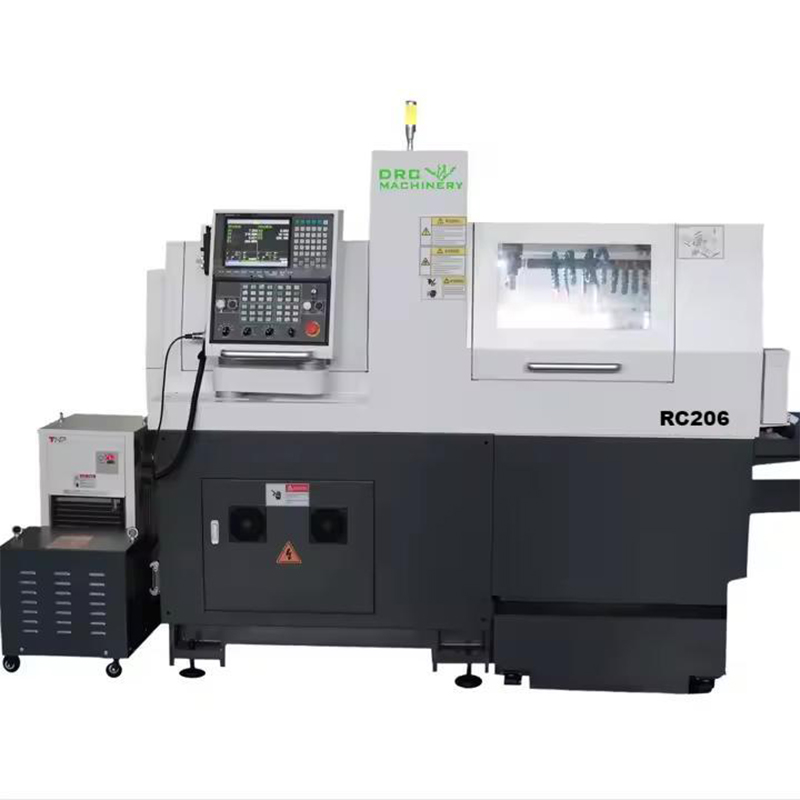

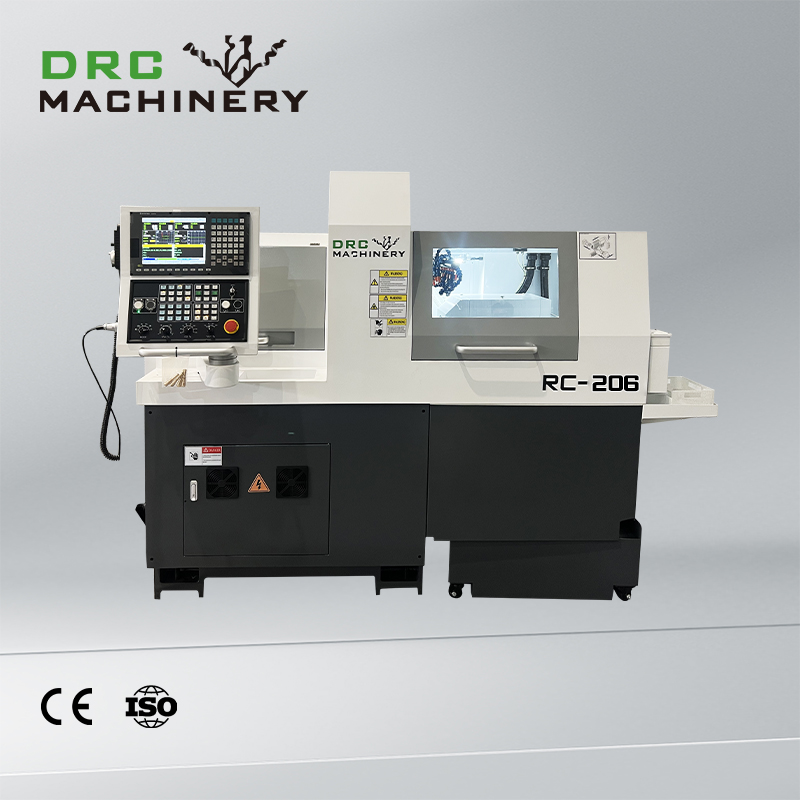

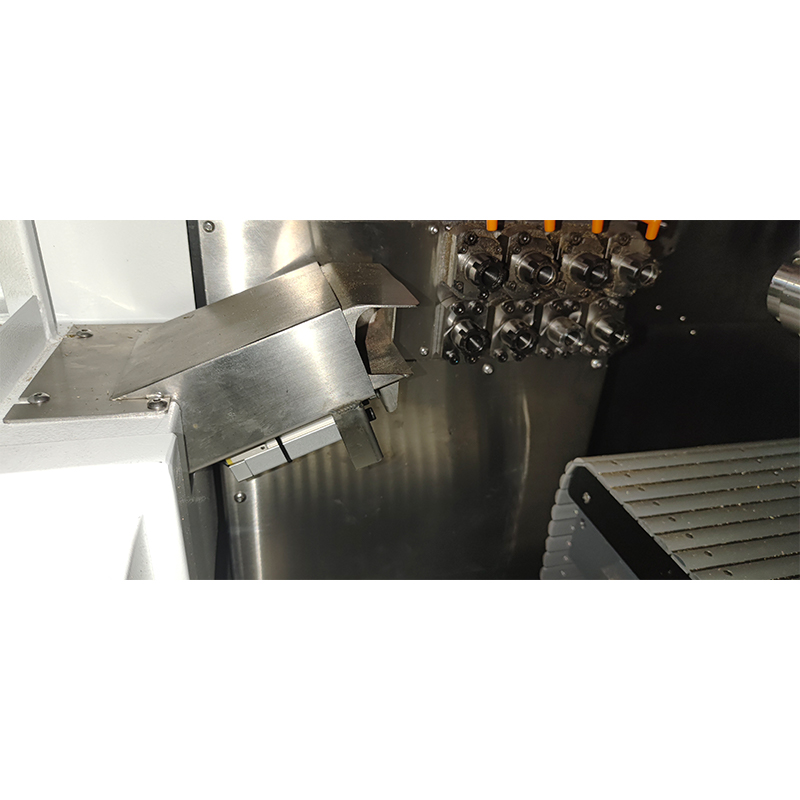

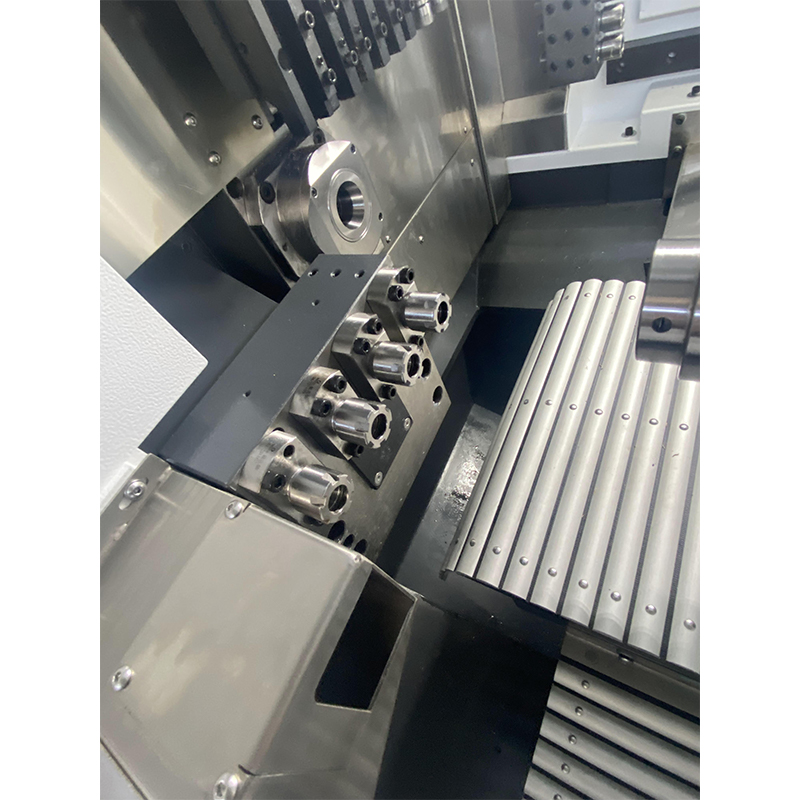

High precision Swiss lathe RC206
Swiss lathe RC206, spindle runout ≤ 0.002mm, repeat positioning accuracy ≤ 0.003mm, maximum speed 10000rpm, adopts FANUC/SYNTEC system, eight-axis communication, can perform turning, milling, drilling and tapping in composite materials.
Swiss lathe RC206 uses Meehanite cast iron body + imported NSK bearings/Hiwin guides, flexible guide bushing/no guide bushing mode switching, suitable for precision processing of φ20mm bar stock, international quality parts, ensures 7×24 hours continuous production, and provides efficient solutions for precision manufacturing.
Description
marker
Enterprise Strength and Certification:
1. 280,000 square meters of modern factory equipped with advanced equipment such as Japanese OKUMA five-sided machining center, KUKA welding robot.
2. More than 20,000 machine tool production experience, precision casting provided by German DMG standard supplier.
3. Passed ISO 9001, CE certification, complying with EU Electromagnetic Compatibility (EMC) and Low Voltage Directive (LVD) standards.
Application Scenario: Suitable for machining precision parts in aerospace, electronics, medical and other industries (such as shafts, discs, complex, specially shaped parts).
After-sales service: installation and commissioning, operation training and 24/7 technical support, as well as an adequate supply of spare parts.
| Number | project | Specification | Unit | Note |
| 1 | Maximum diameter of processed bar | Φ20 | mm | |
| 2 | Spindle through hole diameter | Φ25 | mm | |
| 3 | Maximum length of work piece | 2.5×ΦD，Max 50 | mm | Without guide sleeve |
| 180/One-time delivery | mm | Rotary guide sleeve | ||
| 4 | Max spindle speed | 10000 | r/min | Rotary guide sleeve 8000 |
| 5 | Spindle motor power | 3.7 | kW | |
| 6 | Spindle indexing | C axis function | Continuous indexing | |
| 7 | Max rear spindle speed | 10000 | r/min | |
| 8 | Rear spindle motor power | 3.7 | kW | |
| 9 | Rear spindle indexing | C axis function | Continuous indexing | |
| 10 | Maximum speed of radial power tool | 6000 | r/min | |
| 11 | Radial power head tool power | 0.75 | kW | |
| 12 | Maximum drilling diameter of spindle/sub-spindle | Φ10 | mm | |
| 13 | Maximum threading diameter of spindle/sub-spindle | M10 | mm | |
| 14 | Maximum drilling diameter of radial power head | Φ8 | mm | |
| 15 | Radial power head threading diameter | M6 | mm | |
| 16 | External cylindrical tool | 1×□16+6×□12 | ||
| 17 | End Surface Machining Tool | 4（ER16） | ||

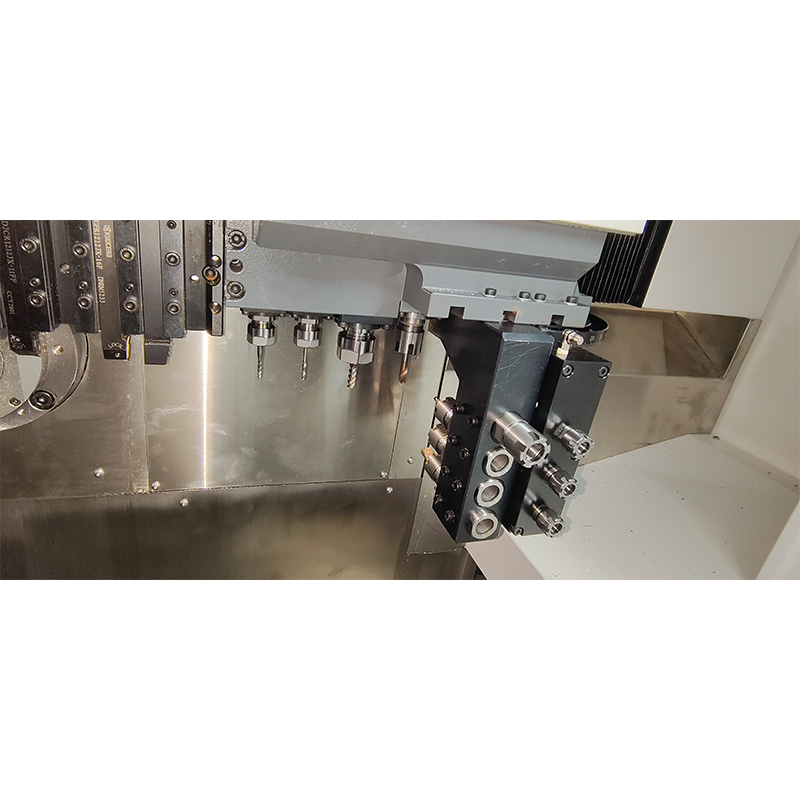

| 18 | Radial power tool | 2（ER11）+3（ER16） | ||
| 19 | Back tool | 4（ER16） | ||
| 20 | Back Strength Tool | 4（ER16） | ||
| 21 | Max speed of rear power tool | 6000 | r/min | |
| 22 | Minimum Resolution | 0.001 | mm | |
| 23 | Spindle runout | ＜0.002 | mm | |
| 24 | Repositioning accuracy | ＜0.003 | mm | |
| 25 | High driving speed | X1/Y2 axis: 20 | m/min | |
| Axes Y1/Z1/X2/Z2: 24 | ||||
| 26 | Cooling motor power | 0.4 | kW | |
| 27 | Dimensions | 2565×1350×1850 | mm | |
| 28 | Machine net weight | ≈3000 | kg |
