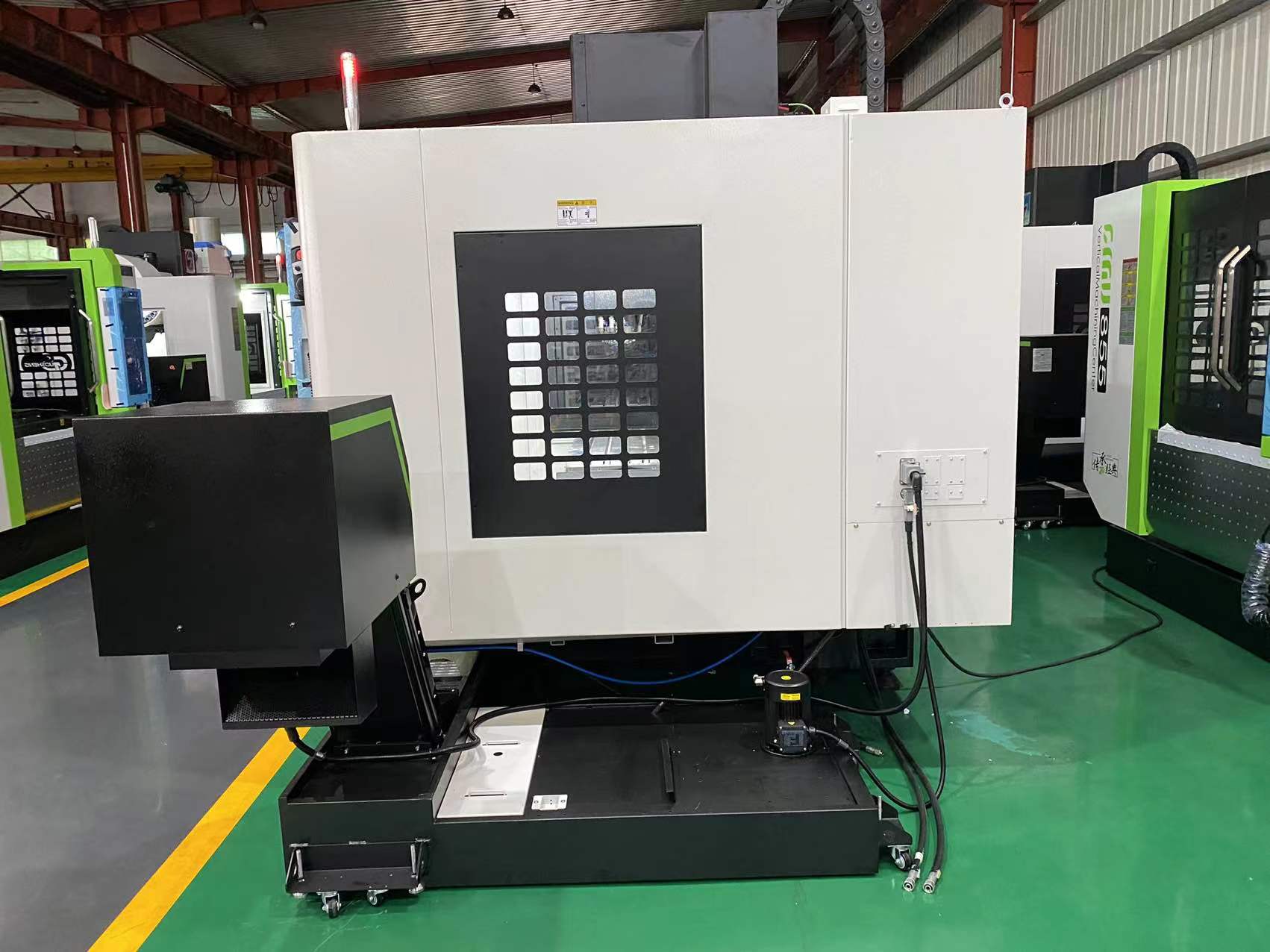

Vertical machining center CMV855E
1. CNC Vertical Milling Machining Center with CMV855 4 Axis Tapered Spindle
2. CMV series high-efficiency vertical machining center adopts traditional cross slide design, optimizes the structure of moving parts through finite element analysis, and improves the high-speed dynamic performance of the machine tool.
3. Suitable for efficient processing of small and medium-sized parts, widely used in automotive, mechanical engineering and other industries.
Description
marker
| Machine model | CMV855E | unit | |
| Workbench | Workbench size | 1000X500 | mm |
| Workbench load | 700 | Kg | |
| T-slot width | 5-18*80 | mm | |
| Processing range | X-axis movement | 850 | mm |
| Y axis movement | 550 | mm | |
| Z axis movement | 550 | mm | |
| Distance from spindle end to workbench | 100-650 | mm | |

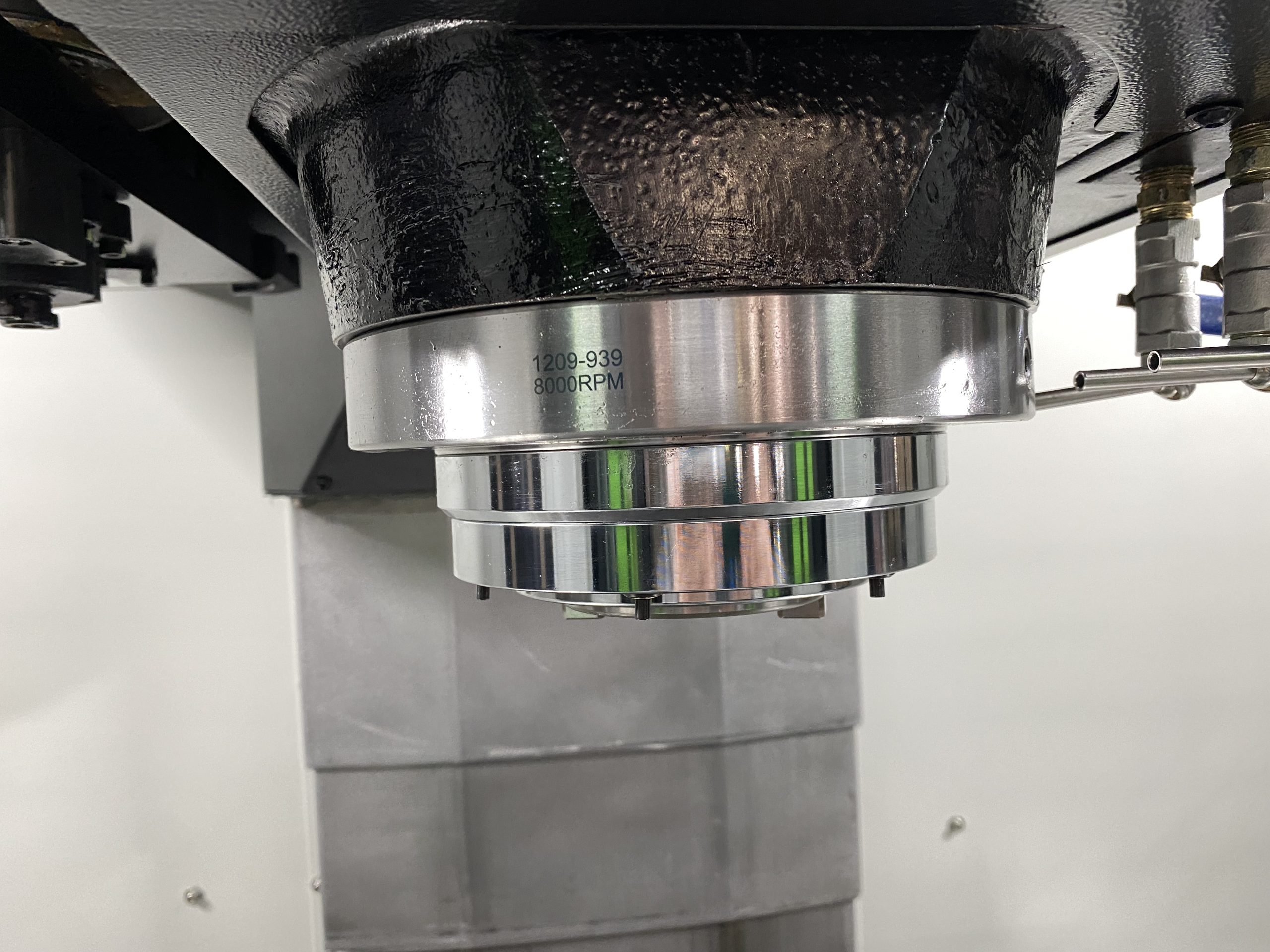

| Spindle | Taper hole model | BT40 | |
| Characteristics of rivets | P40T-1-MAS403(45°) | ||
| Speed range | 10-8000 | rpm | |
| Spindle front bearing inner diameter | 70 | mm | |
| System Configuration | FANUC 0i MF 5 pack | ||
| Engine Configuration | X axis motor | βis12 | |
| 1.8 | KW | ||
| 11 | Nm | ||
| Y axis motor | βis12 | ||
| 1.8 | KW | ||
| 11 | Nm | ||
| Z axis motor | βis22B | ||
| 3 | KW | ||
| 20 | Nm | ||
| Spindle motor | βiI12 | ||
| 11/15 | KW | ||
| 52.5/95.5 | Nm | ||

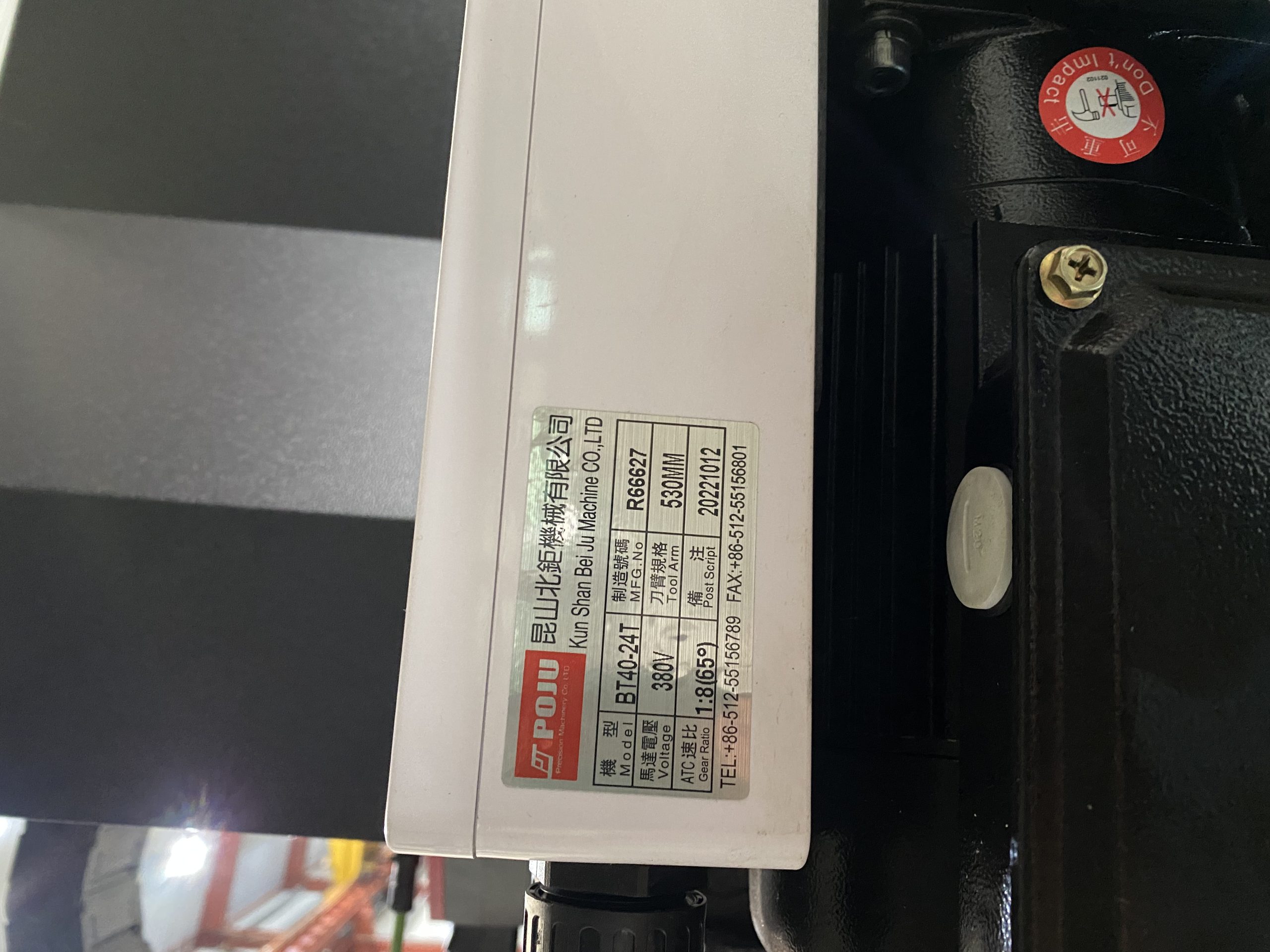

| Tool store | Tool magazine capacity | 24 | Pcs. |
| Tool selection method | Any | ||
| Maximum tool weight | 8 | Kg | |
| Maximum tool length | 300 | mm | |
| Accuracy | Positioning accuracy | 0.008 | mm |
| Repositioning accuracy | 0.005 | mm | |
| Feed | Fastest X-axis movement | 30(MAX:36) | m/min |
| Fastest Y-axis movement | 30(MAX:36) | m/min | |
| Fastest Z-axis movement | 24 | m/min | |
| Host size | About 2700*2400*2850 (max) | mm | |
| Machine weight | About 5.4 | T | |
